Our Sturdy Ship

Eclipse 2008 gallery image L018.jpg

2008-07-24 12:21 UTC Click images for reduced size.

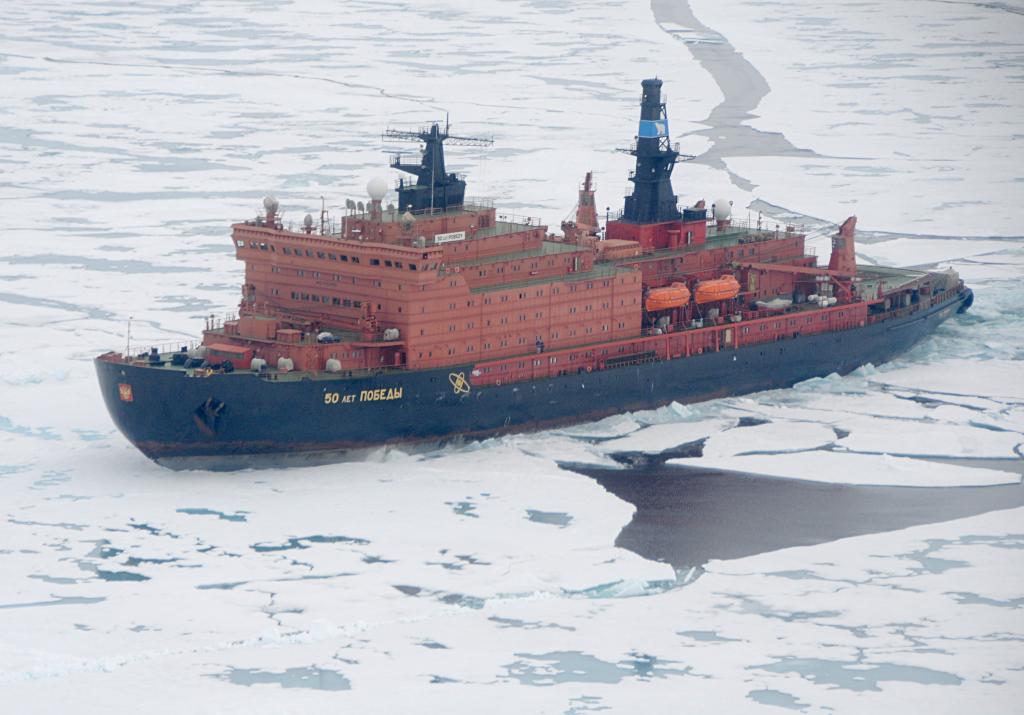

The 50 лет Победы (50 Let Pobedy) is the largest and most powerful icebreaker in service in the world today. With a displacement of 25,850 metric tonnes, length of 159.6 metres, and a beam of 30 metres, powered by twin nuclear reactors fuelled with highly enriched uranium, it has approximately 75,000 horsepower available through its three electrically-driven screws. The ship has a maximum speed of 21.4 knots in open water, and can break through ice as thick as three metres at a sustained speed of 3 knots.

Eclipse 2008 gallery image L019.jpg

2008-07-31 16:50 UTC 76°19.12'N 55°23.32'E

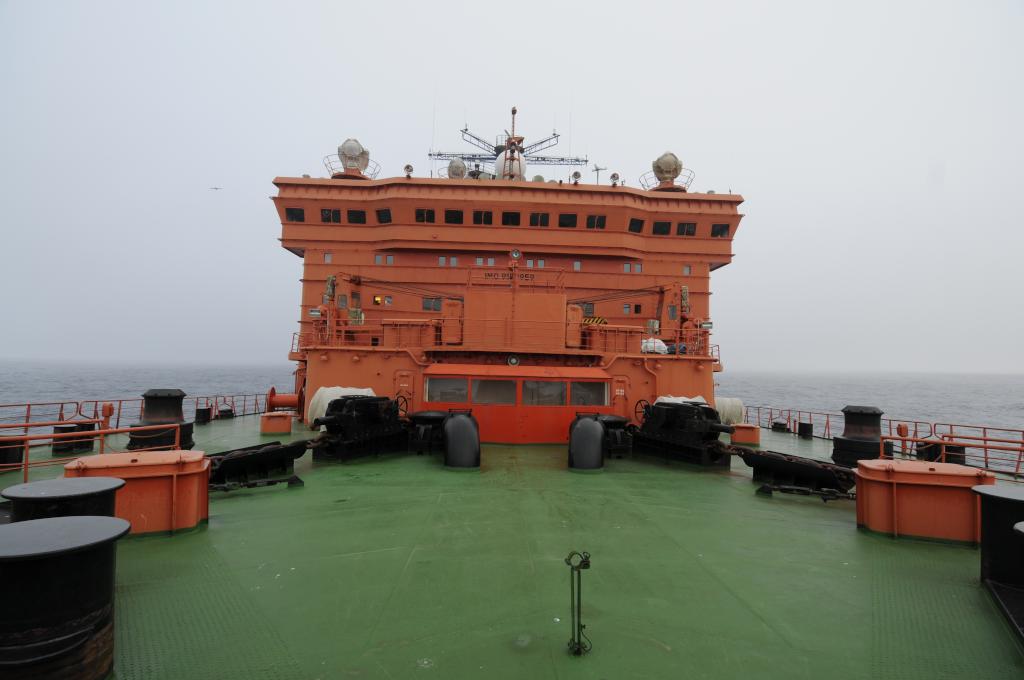

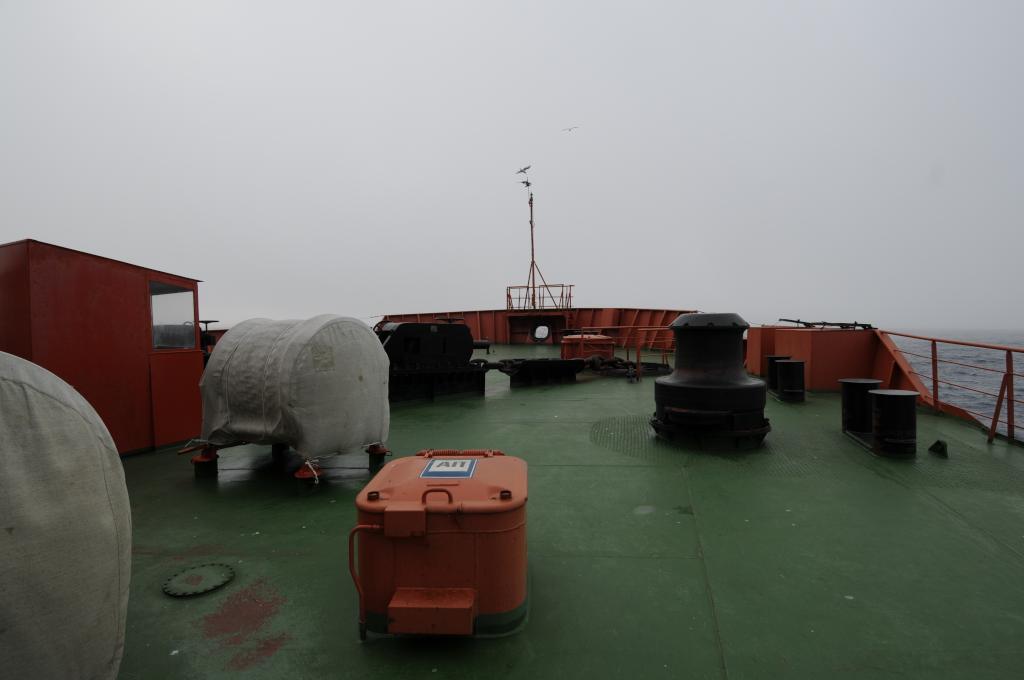

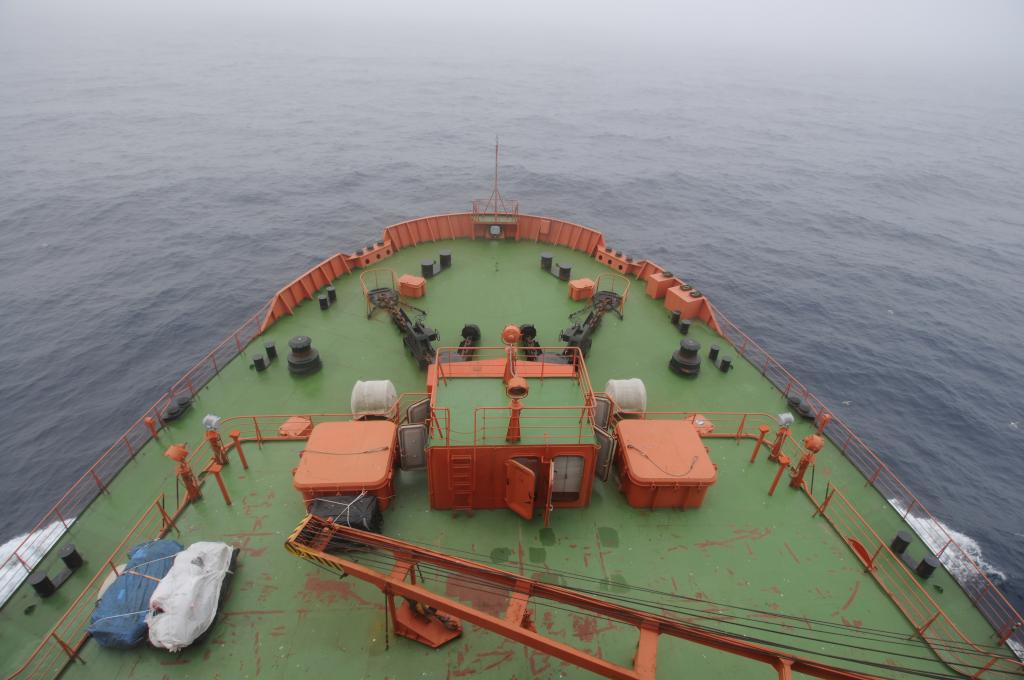

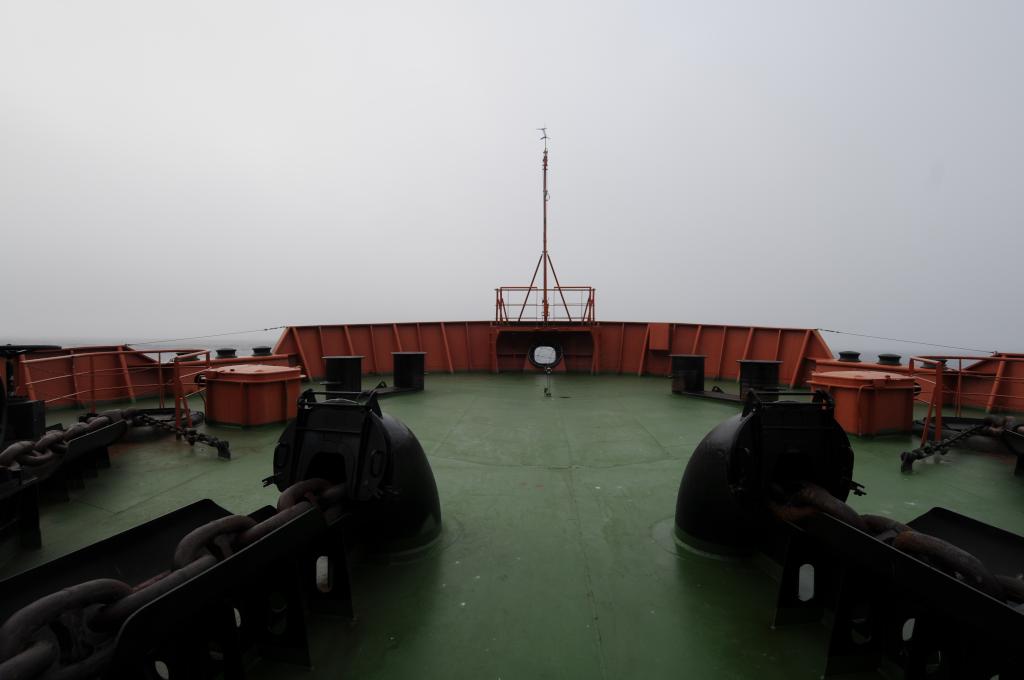

Here is a tour of the ship from bow to stern.

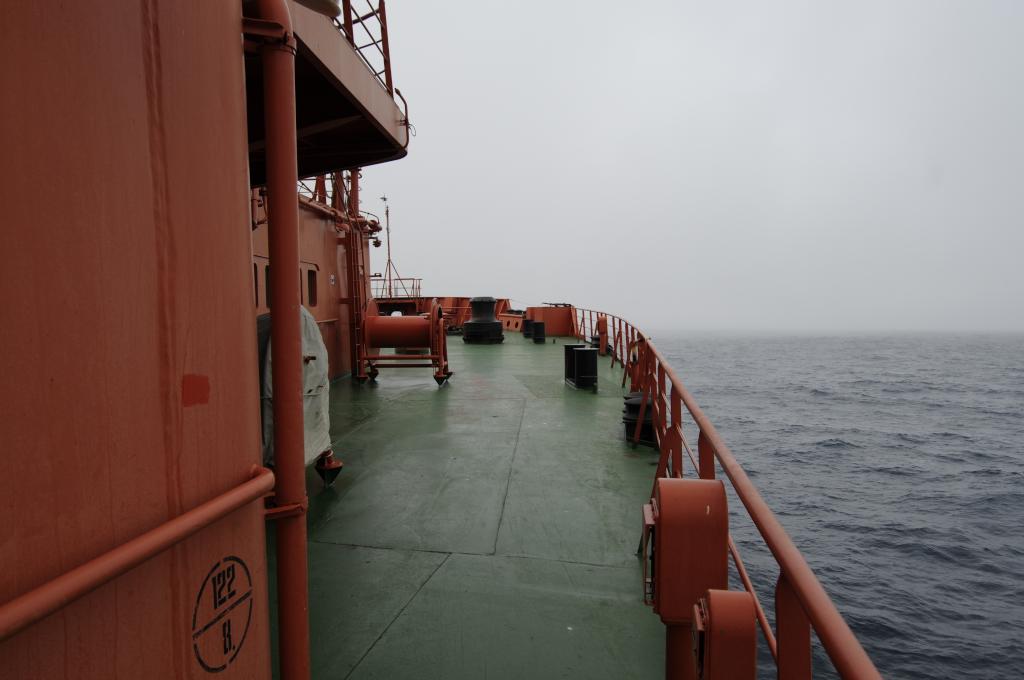

Eclipse 2008 gallery image L020.jpg

2008-07-31 16:43 UTC 76°18.25'N 55°22.83'E

Eclipse 2008 gallery image L021.jpg

2008-07-31 16:44 UTC

Eclipse 2008 gallery image L022.jpg

2008-07-31 16:44 UTC 76°18.37'N 55°22.88'E

Eclipse 2008 gallery image L023.jpg

2008-07-31 16:45 UTC 76°18.50'N 55°22.94'E

Eclipse 2008 gallery image L024.jpg

2008-07-31 16:45 UTC 76°18.46'N 55°22.91'E

Eclipse 2008 gallery image L025.jpg

2008-07-31 16:12 UTC 76°14.64'N 55°20.35'E

Eclipse 2008 gallery image L026.jpg

2008-07-31 16:16 UTC 76°15.11'N 55°20.69'E

Eclipse 2008 gallery image L027.jpg

2008-07-31 16:16 UTC 76°15.15'N 55°20.70'E

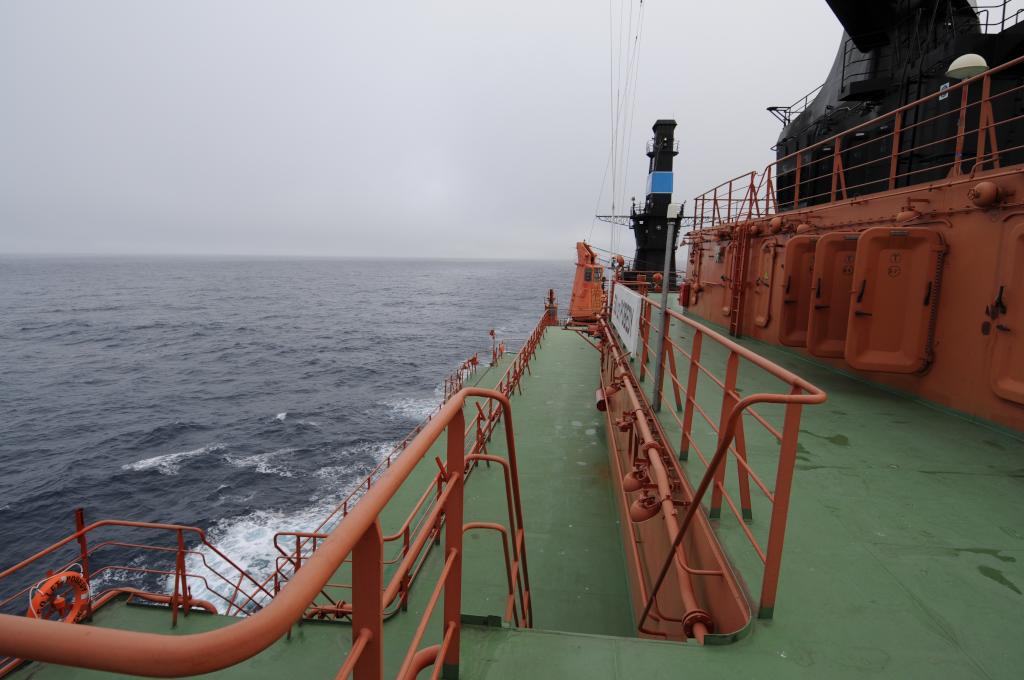

Eclipse 2008 gallery image L028.jpg

2008-07-31 16:16 UTC 76°15.19'N 55°20.76'E

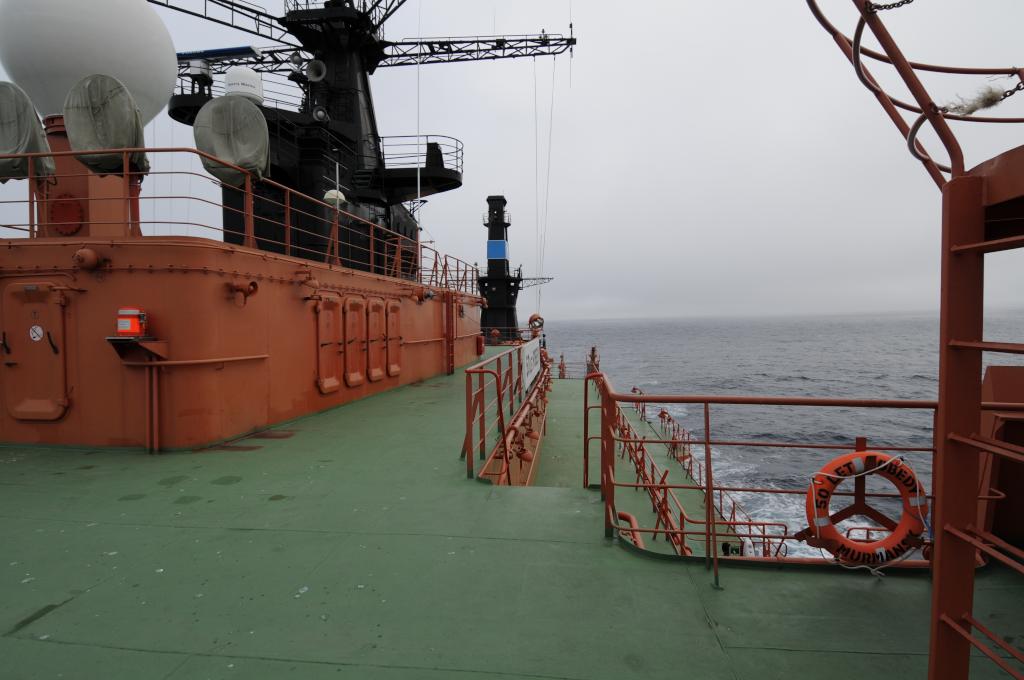

Eclipse 2008 gallery image L029.jpg

2008-07-31 16:17 UTC 76°15.30'N 55°20.78'E

Eclipse 2008 gallery image L030.jpg

2008-07-31 16:18 UTC 76°15.39'N 55°20.84'E

Eclipse 2008 gallery image L031.jpg

2008-07-31 16:18 UTC 76°15.42'N 55°20.87'E

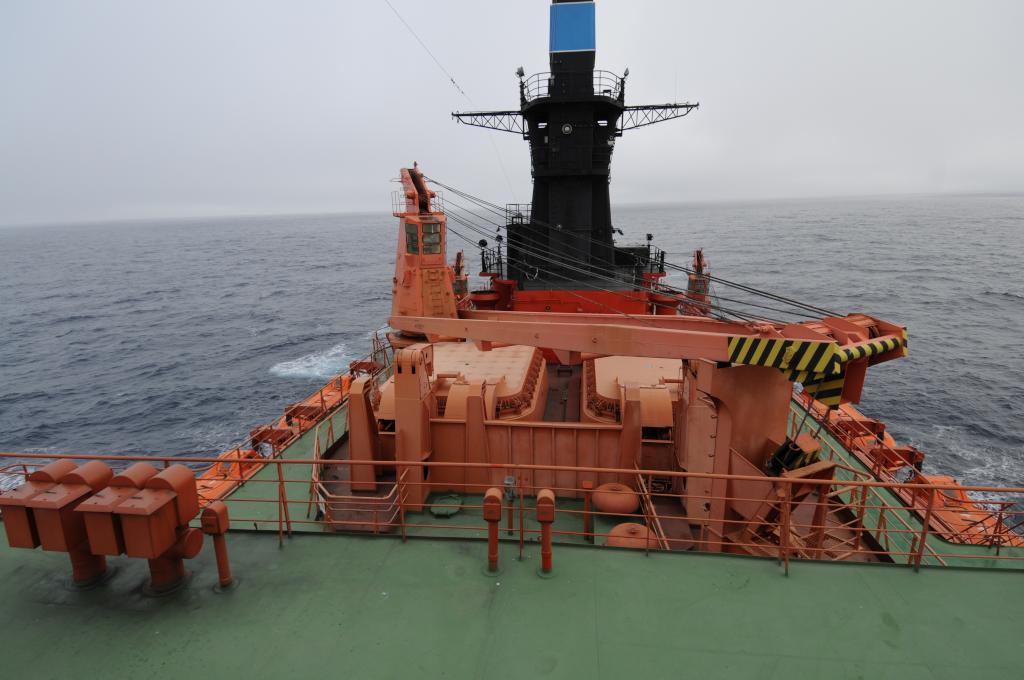

Beneath the crane are the covers for the two reactor vessels. For refuelling and servicing the reactors, these covers may be removed and the reactors accessed by a dockside crane.

Eclipse 2008 gallery image L032.jpg

2008-07-31 16:19 UTC 76°15.44'N 55°20.89'E

Eclipse 2008 gallery image L033.jpg

2008-07-31 16:20 UTC 76°15.57'N 55°20.97'E

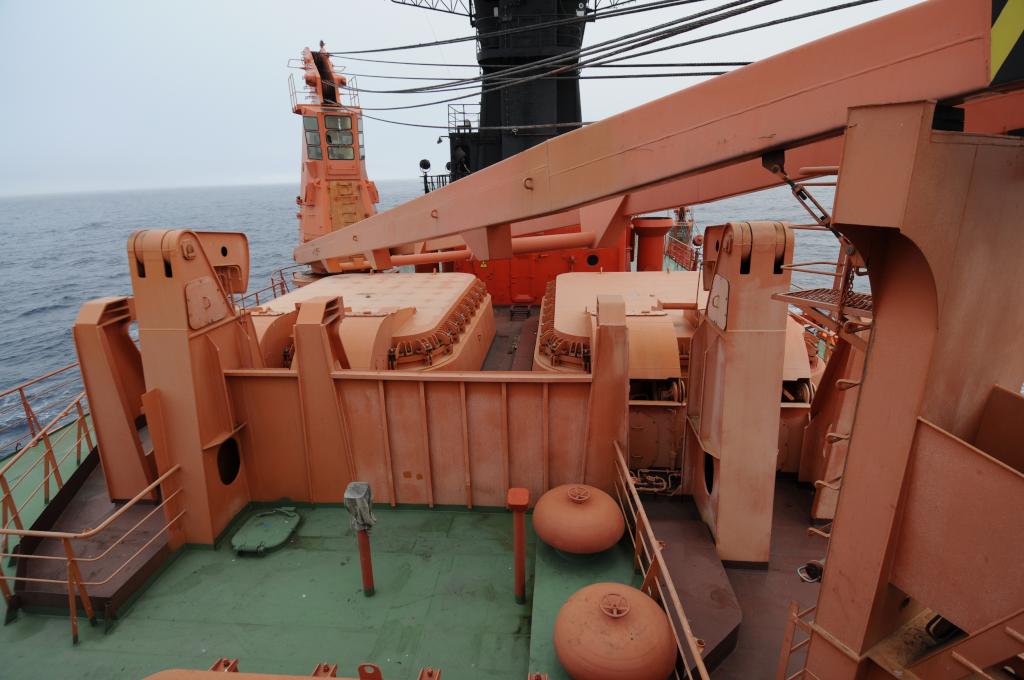

Eclipse 2008 gallery image L034.jpg

2008-07-31 16:20 UTC 76°15.60'N 55°21.00'E

Eclipse 2008 gallery image L035.jpg

2008-07-31 16:20 UTC 76°15.63'N 55°21.04'E

Eclipse 2008 gallery image L036.jpg

2008-07-31 16:20 UTC 76°15.64'N 55°21.05'E

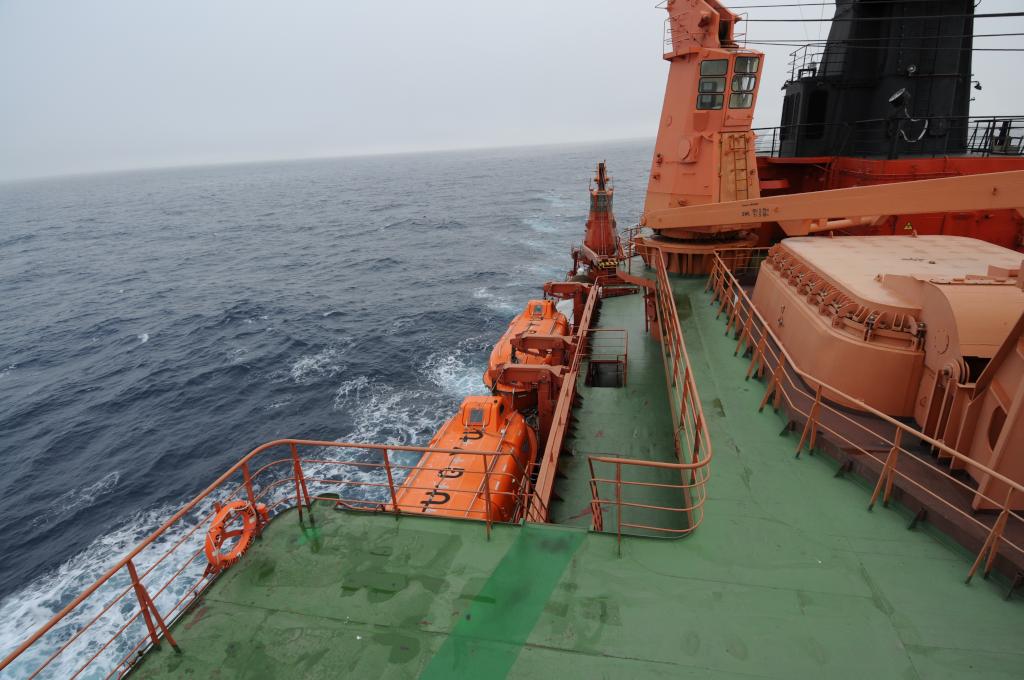

The ship carries four davit-launched extreme weather lifeboats, each with a capacity of 60 persons. These boats can accommodate all of the crew and passengers without resort to the inflatable liferafts also carried. These are the two boats on the starboard side of the ship.

Eclipse 2008 gallery image L037.jpg

2008-07-31 16:21 UTC 76°15.76'N 55°21.09'E

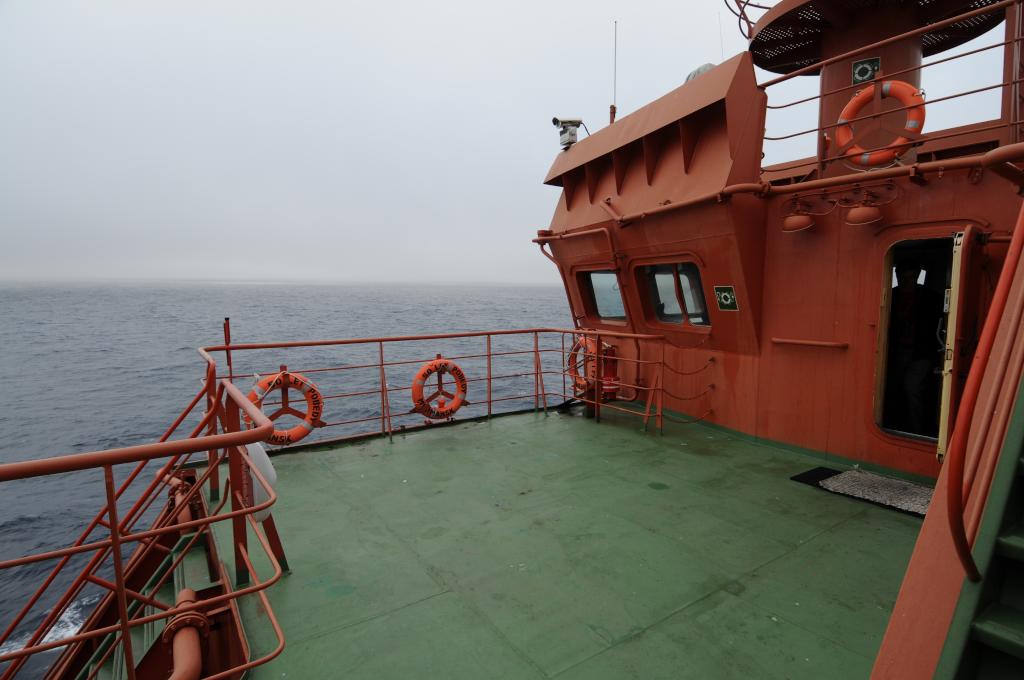

Access to the bridge is from the exterior of the bridge deck or internally. The bridge is open to passengers at all times except for departure, docking, and the critical maneuvers to arrive at the North Pole.

Eclipse 2008 gallery image L038.jpg

2008-07-31 16:22 UTC 76°15.81'N 55°21.10'E

Eclipse 2008 gallery image L039.jpg

2008-07-31 16:23 UTC 76°15.92'N 55°21.18'E

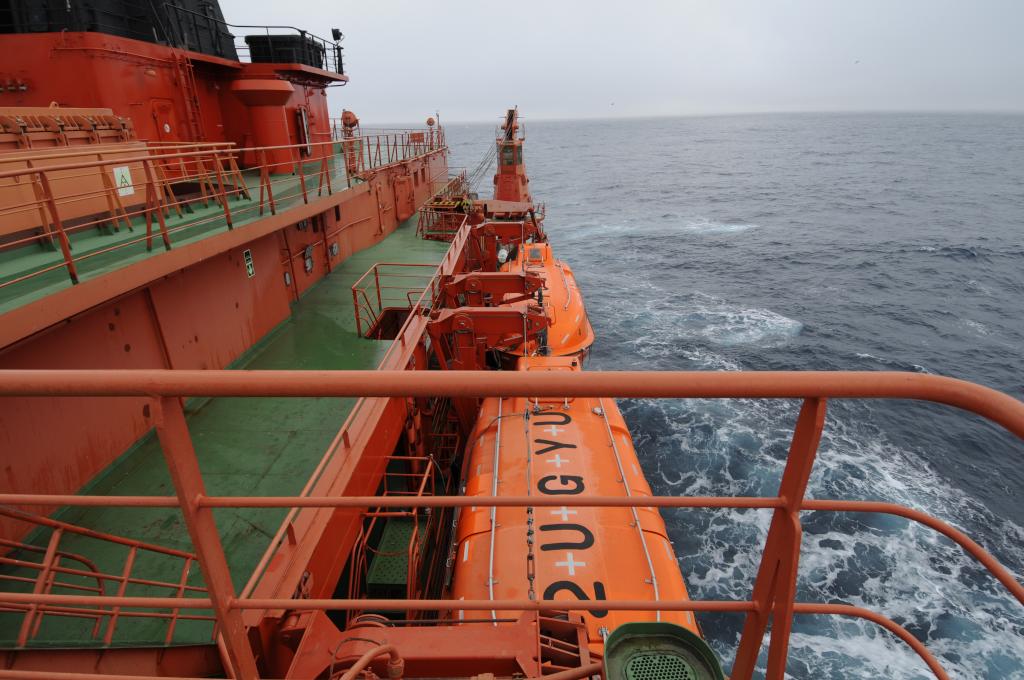

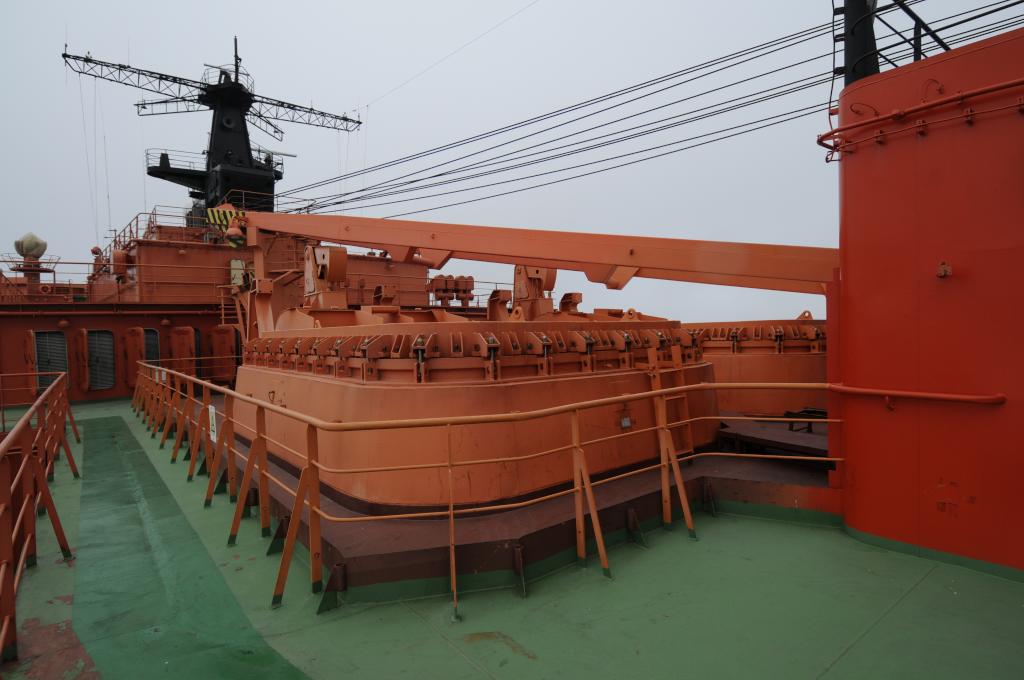

Here are the two port lifeboats. Note the port reactor cover at the left.

Eclipse 2008 gallery image L040.jpg

2008-07-31 16:23 UTC 76°15.95'N 55°21.20'E

Eclipse 2008 gallery image L041.jpg

2008-07-31 16:24 UTC 76°15.99'N 55°21.25'E

Eclipse 2008 gallery image L042.jpg

2008-07-31 16:24 UTC 76°16.04'N 55°21.29'E

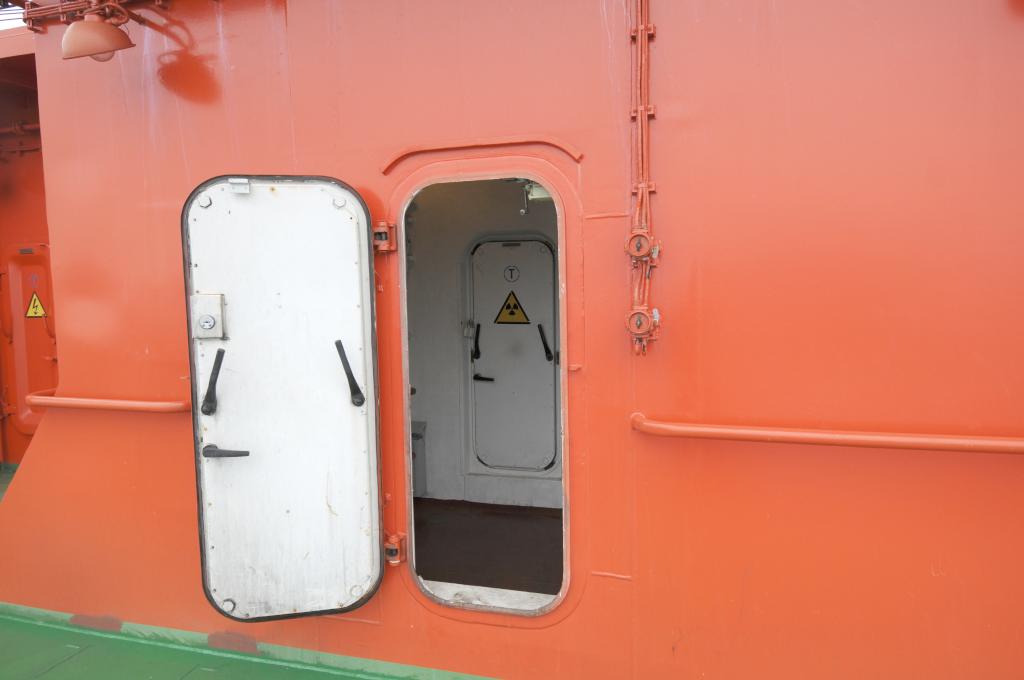

Sunshine units—don't go there!

Eclipse 2008 gallery image L043.jpg

2008-07-31 16:24 UTC 76°16.05'N 55°21.30'E

Eclipse 2008 gallery image L044.jpg

2008-07-31 16:24 UTC 76°16.08'N 55°21.31'E

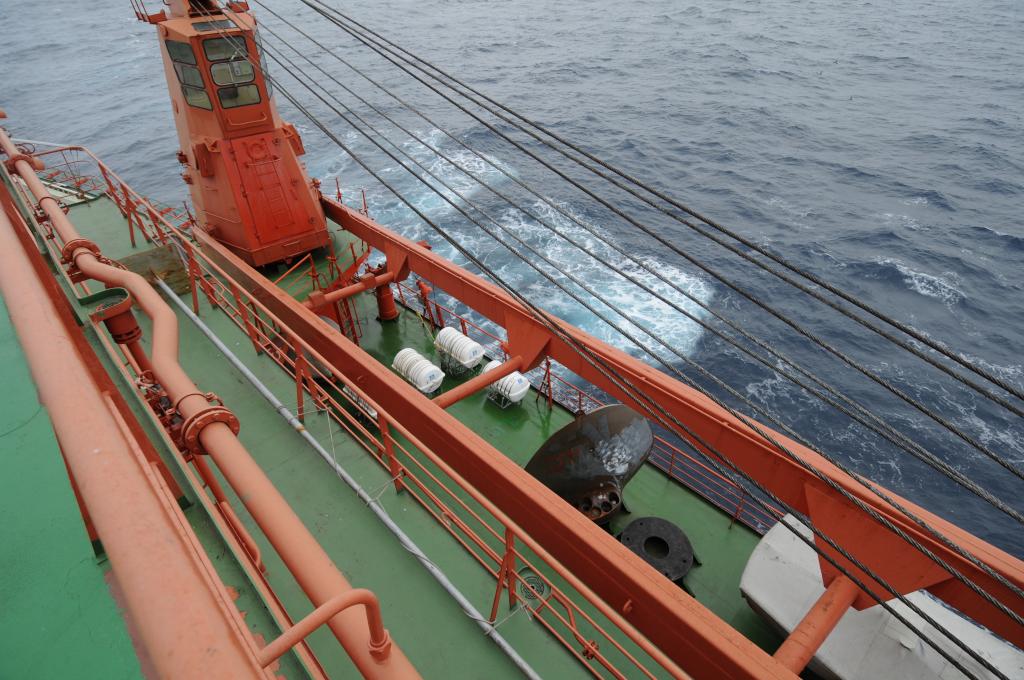

Behind the lifeboats are mountings for spare propeller blades. The ship carried three on this voyage: one station was empty. Behind the propeller blades are the white canisters containing the inflatable life rafts.

Eclipse 2008 gallery image L045.jpg

2008-07-31 16:25 UTC 76°16.11'N 55°21.33'E

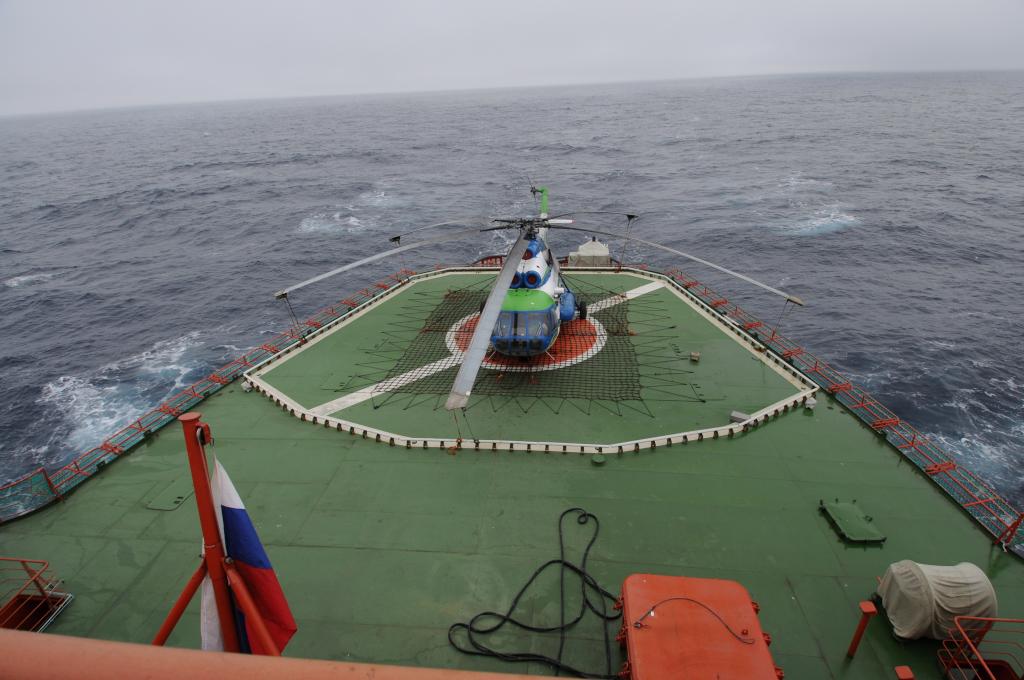

The stern helicopter deck accommodates the Mil Mi-8 helicopter which is used in winter icebreaking missions to scout paths ahead of the ship and in summer tourist service for sightseeing flights and to ferry people to landing sites in Franz Josef Land.

Eclipse 2008 gallery image L046.jpg

2008-07-31 16:25 UTC 76°16.15'N 55°21.37'E

Eclipse 2008 gallery image L047.jpg

2008-07-31 16:28 UTC 76°16.50'N 55°21.61'E

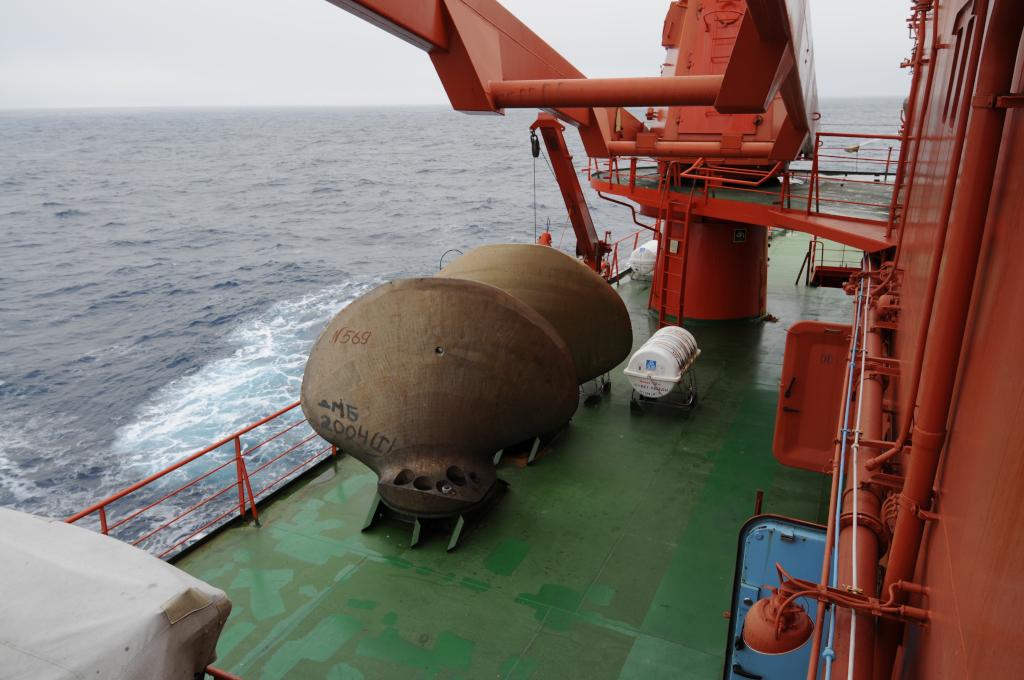

Here are the two spare propeller blades on the starboard side.

Eclipse 2008 gallery image L048.jpg

2008-07-31 16:28 UTC 76°16.53'N 55°21.64'E

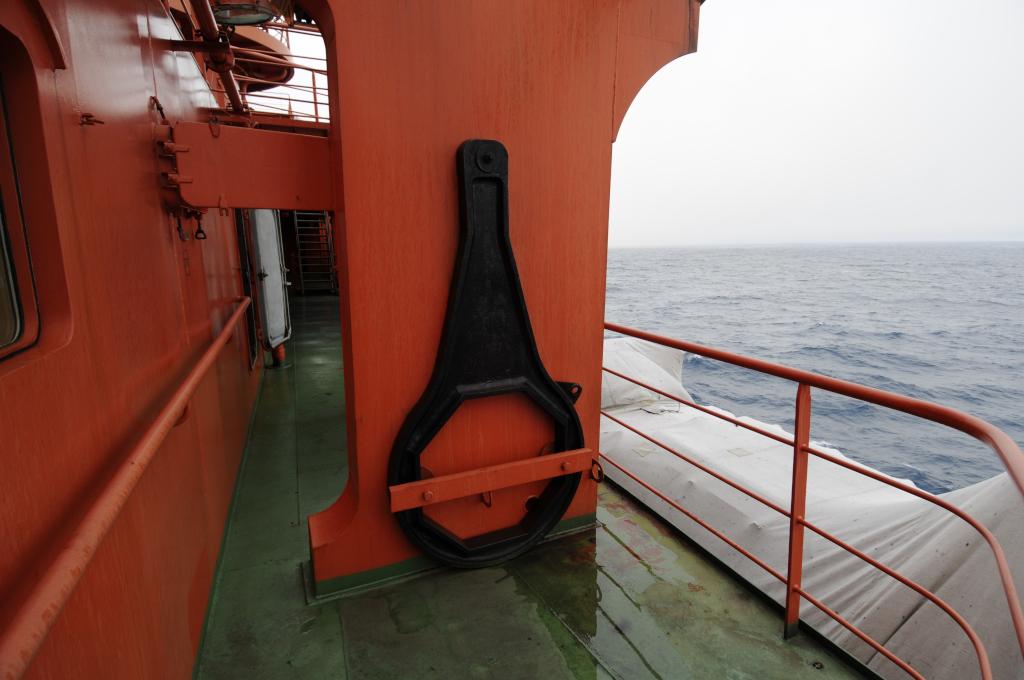

To change the propeller, you're going to need a big spanner! This one is about two metres tall and stowed near the spare blades.

Eclipse 2008 gallery image L049.jpg

2008-07-31 16:29 UTC 76°16.63'N 55°21.70'E

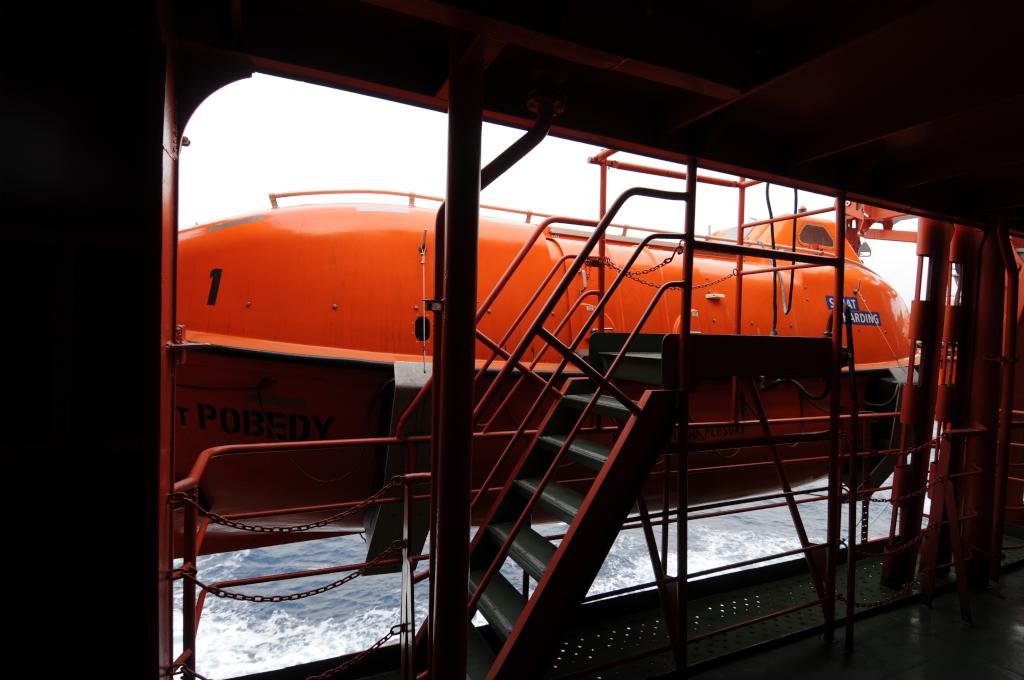

Here's a view of one of the lifeboats from the deck whence one boards the boats.

Eclipse 2008 gallery image L050.jpg

2008-07-31 16:30 UTC 76°16.69'N 55°21.74'E

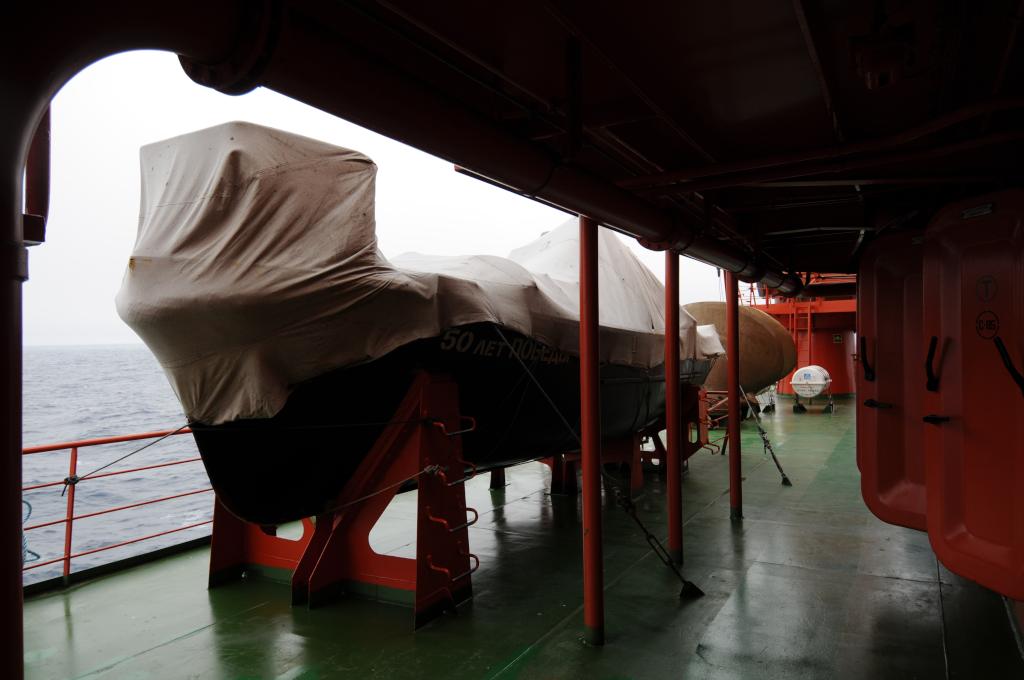

The ship carries two motorised launches for emergency purposes (for example, to support divers performing repairs to the screws or rudder, or to rescue people stranded due to failure of the helicopter). Fortunately, we did not have recourse to these craft. You can see the spare propeller blades and an inflatable liferaft canister beyond the boat.

Eclipse 2008 gallery image L051.jpg

2008-07-31 16:31 UTC 76°16.83'N 55°21.83'E

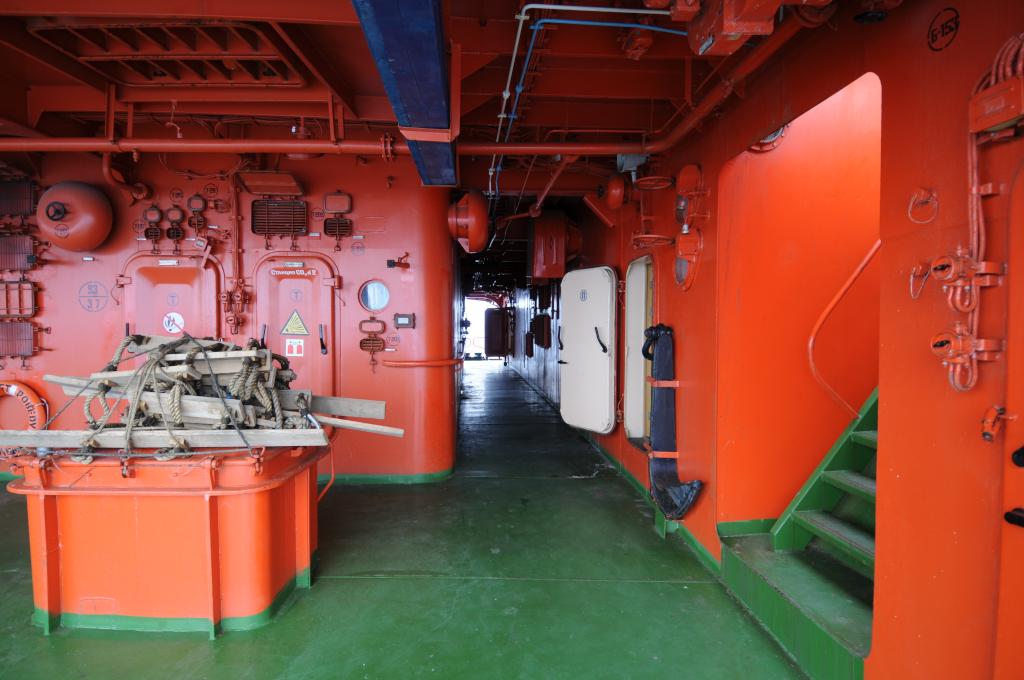

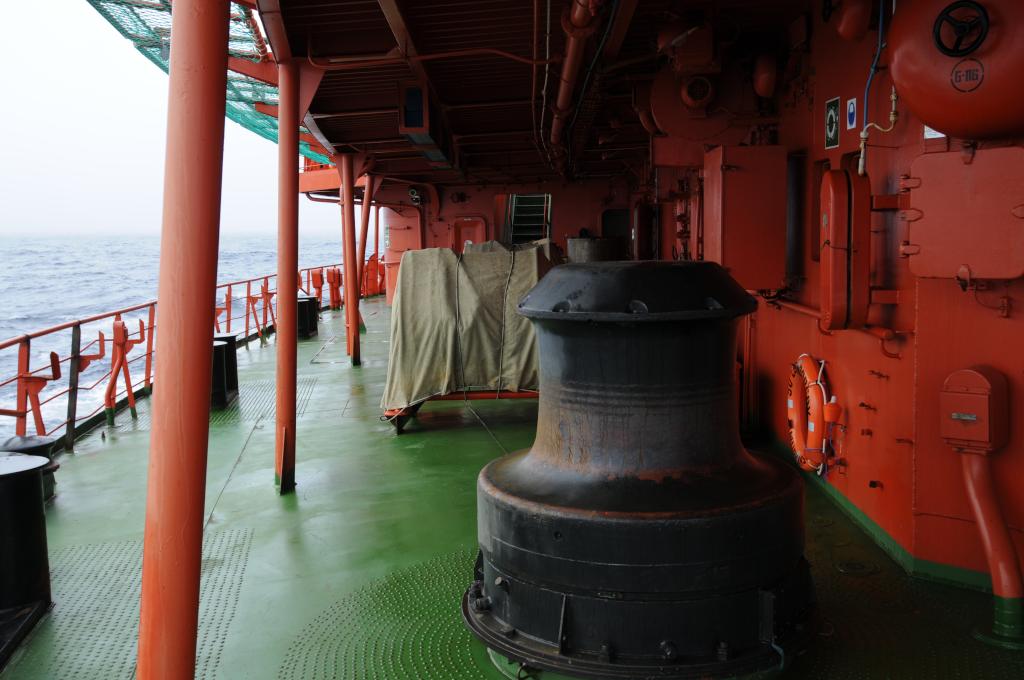

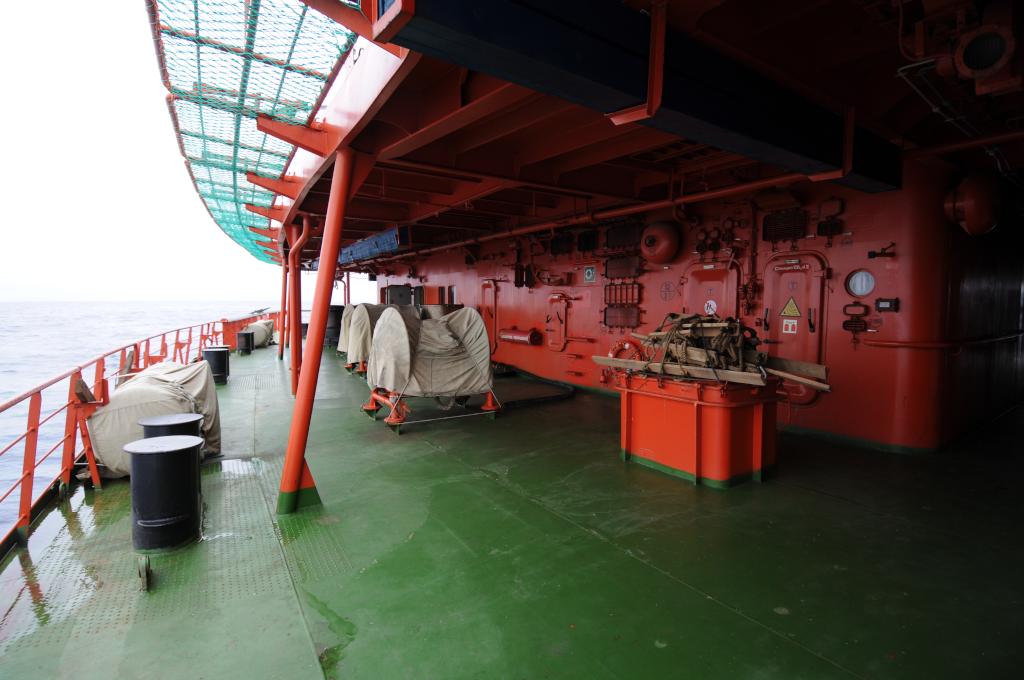

The stern, below the helicopter deck, is crowded with a variety of equipment and has a number of narrow passageways.

Eclipse 2008 gallery image L052.jpg

2008-07-31 16:31 UTC 76°16.84'N 55°21.84'E

Eclipse 2008 gallery image L053.jpg

2008-07-31 16:33 UTC 76°17.09'N 55°22.00'E

Eclipse 2008 gallery image L054.jpg

2008-07-31 16:33 UTC 76°17.05'N 55°21.98'E

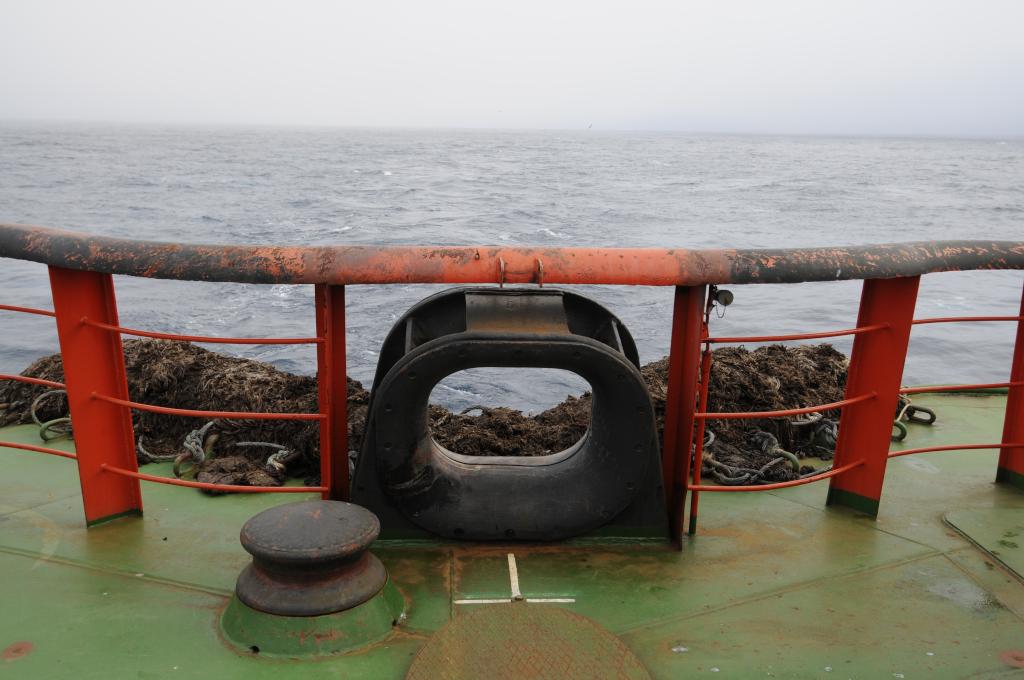

The stern of the icebreaker has a characteristic V-shaped indentation with padding. This allows another ship to be hauled into tandem and either be shepherded through the ice in winter or contribute its power to that of the icebreaker when faced with thick ice.

Eclipse 2008 gallery image L055.jpg

2008-07-31 16:33 UTC 76°17.00'N 55°21.94'E

A kittiwake found the stern a convenient place to hitch a ride.

Eclipse 2008 gallery image L056.jpg

2008-07-27 17:25 UTC

The ship's visitor log in the captain's conference room contains this May 2007 entry by then Russian President Vladimir Putin.
